Create a module that implements a NOT gate. 创建一个实现非门的模块。

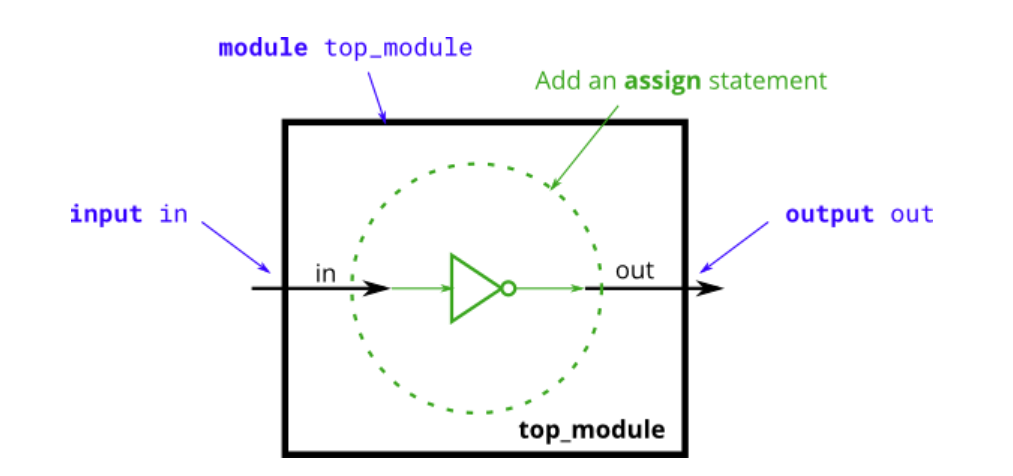

This circuit is similar to wire, but with a slight difference. When making the connection from the wire in to the wire out we're going to implement an inverter (or "NOT-gate") instead of a plain wire. 这个电路类似于导线，但有一个细微差别。在从in导线到out导线的连接过程中，我们将使用一个反相器（或“非门”）来替代普通的导线。
Use an assign statement. The assign statement will continuously drive the inverse of in onto wire out. 使用 assign 语句。assign 语句会持续将 in 的反值驱动到线网 out 上。

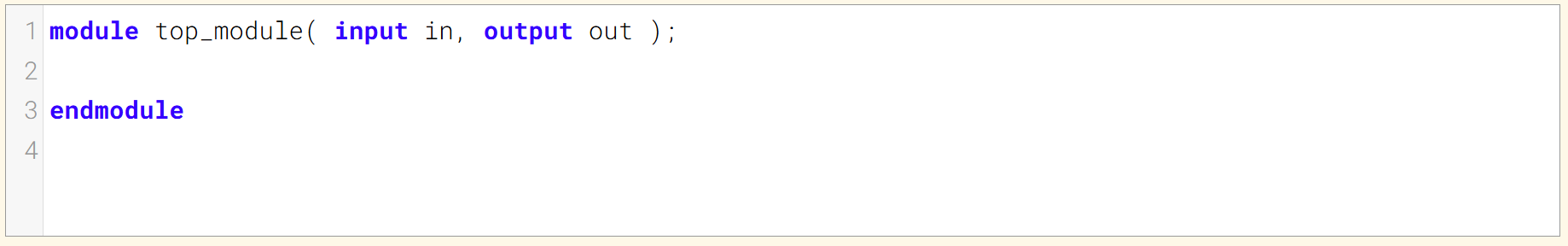

Module Declaration 模块声明
Write your solution here

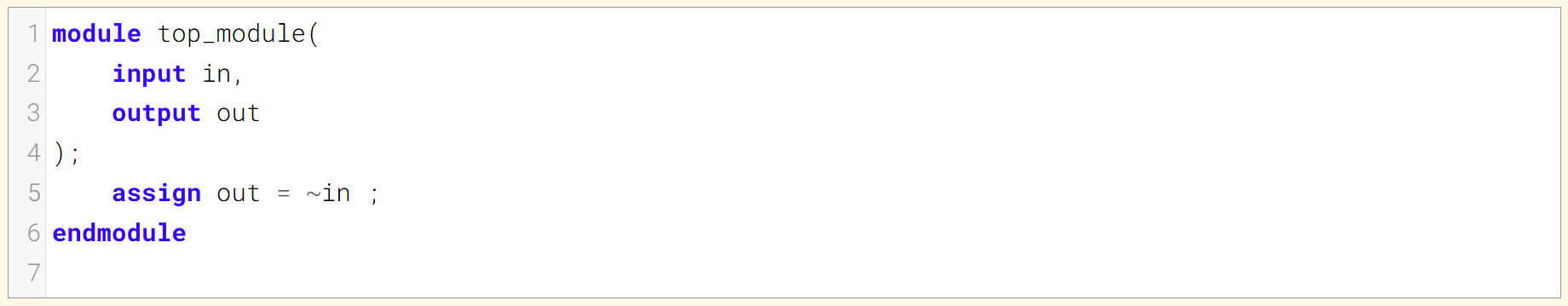

Solution

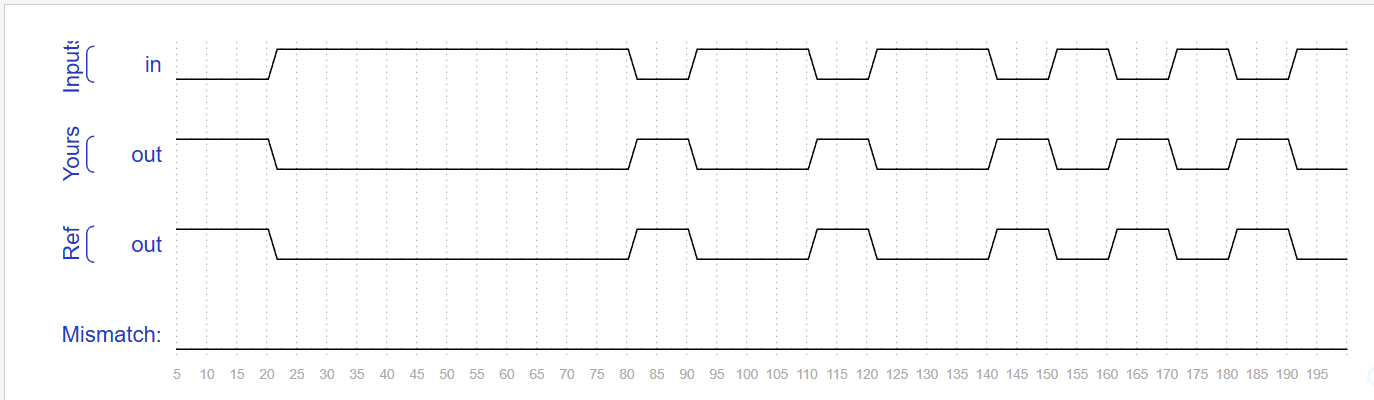

Timing diagrams
