And gate 与门
Create a module that implements an AND gate. 创建一个实现与门的模块。

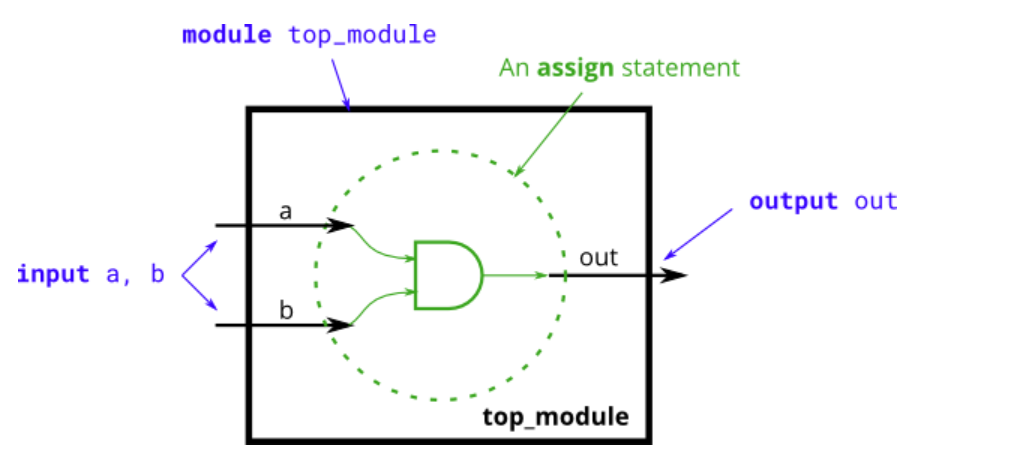

This circuit now has three wires (a, b, and out). Wires a and b already have values driven onto them by the input ports. But wire out currently is not driven by anything. Write an assign statement that drives out with the AND of signals a and b. 该电路现在有三根导线（a、b 和 out）。导线 a 和 b 已由输入端口赋予了值，但导线 out 目前没有任何信号驱动。请编写一条 assign 语句，使 out 输出信号 a 和 b 的与运算结果。
Note that this circuit is very similar to the NOT gate, just with one more input. If it sounds different, it's because I've started describing signals as being driven (has a known value determined by something attached to it) or not driven by something. Input wires are driven by something outside the module. assign statements will drive a logic level onto a wire. As you might expect, a wire cannot have more than one driver (what is its logic level if there is?), and a wire that has no drivers will have an undefined value (often treated as 0 when synthesizing hardware). 请注意，该电路与非门非常相似，只是多了一个输入。如果听起来有所不同，那是因为我开始将信号描述为被驱动（具有由连接的外部元件确定的已知值）或未被驱动。Input wires由模块外部的元件驱动。assign语句会将一个逻辑电平驱动到线上。正如你所料，一根线不能有多个驱动源（如果有多个，其逻辑电平是什么？），而没有驱动源的线将具有未定义的值（在综合硬件时通常被视为0）。

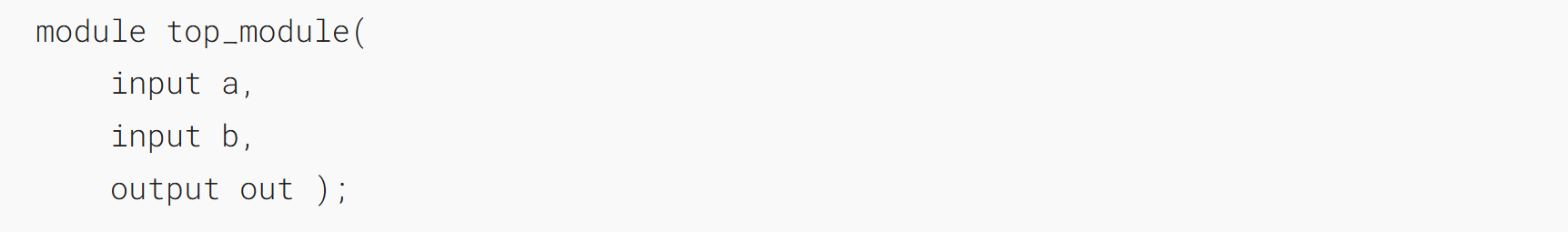

Module Declaration1

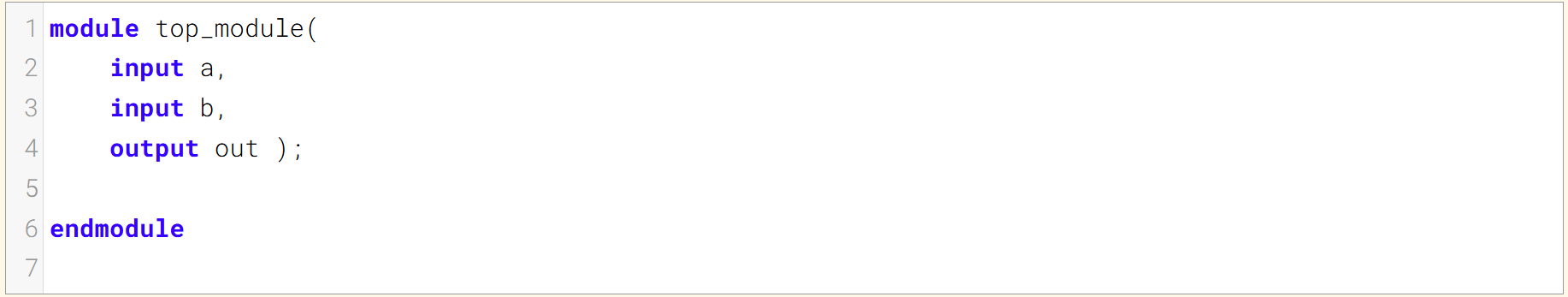

Write your solution here

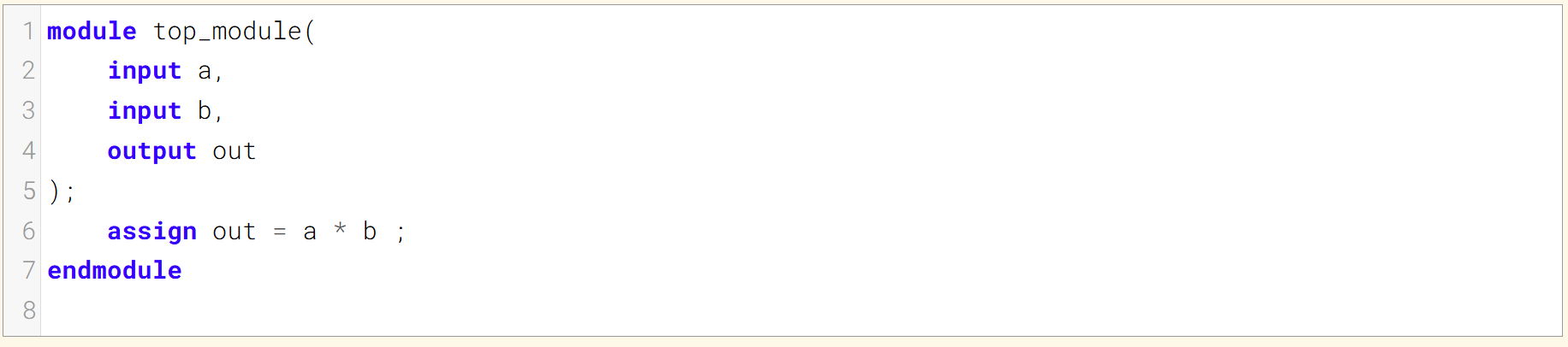

Solution

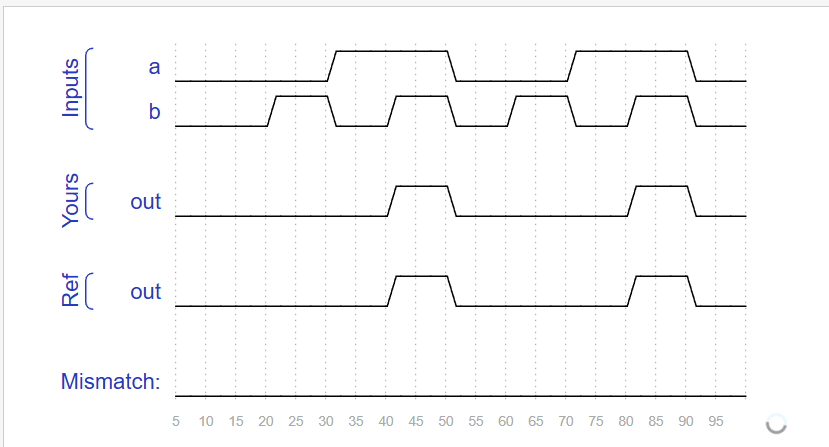

Timing diagrams
