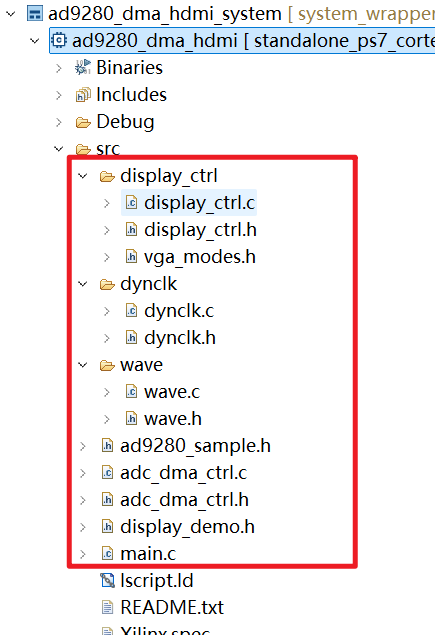

display_ctrl
display_ctrl.c
c
#include "display_ctrl.h"
#include "xdebug.h"
#include "xil_io.h"
int DisplayStop(DisplayCtrl *dispPtr)
{
//If already stopped, do nothing
if (dispPtr->state == DISPLAY_STOPPED)
{
return XST_SUCCESS;
}
//Disable the disp_ctrl core, and wait for the current frame to finish (the core cannot stop mid-frame)
XVtc_DisableGenerator(&dispPtr->vtc);
// Stop the VDMA core
XAxiVdma_DmaStop(dispPtr->vdma, XAXIVDMA_READ);
while(XAxiVdma_IsBusy(dispPtr->vdma, XAXIVDMA_READ));
//Update Struct state
dispPtr->state = DISPLAY_STOPPED;
//TODO: consider stopping the clock here, perhaps after a check to see if the VTC is finished
if (XAxiVdma_GetDmaChannelErrors(dispPtr->vdma, XAXIVDMA_READ))
{
xdbg_printf(XDBG_DEBUG_GENERAL, "Clearing DMA errors...\r\n");
XAxiVdma_ClearDmaChannelErrors(dispPtr->vdma, XAXIVDMA_READ, 0xFFFFFFFF);
return XST_DMA_ERROR;
}
return XST_SUCCESS;
}
int DisplayStart(DisplayCtrl *dispPtr)
{
int Status;
ClkConfig clkReg;
ClkMode clkMode;
int i;
XVtc_Timing vtcTiming;
XVtc_SourceSelect SourceSelect;
xdbg_printf(XDBG_DEBUG_GENERAL, "display start entered\n\r");
/*
* If already started, do nothing
*/
if (dispPtr->state == DISPLAY_RUNNING)
{
return XST_SUCCESS;
}
//Calculate the PLL divider parameters based on the required pixel clock frequency
ClkFindParams(dispPtr->vMode.freq, &clkMode);
//Store the obtained frequency to pxlFreq. It is possible that the PLL was not able to exactly generate the desired pixel clock, so this may differ from vMode.freq.
dispPtr->pxlFreq = clkMode.freq;
//Write to the PLL dynamic configuration registers to configure it with the calculated parameters.
if (!ClkFindReg(&clkReg, &clkMode))
{
xdbg_printf(XDBG_DEBUG_GENERAL, "Error calculating CLK register values\n\r");
return XST_FAILURE;
}
ClkWriteReg(&clkReg, dispPtr->dynClkAddr);
//Enable the dynamically generated clock
ClkStop(dispPtr->dynClkAddr);
ClkStart(dispPtr->dynClkAddr);
//Configure the vtc core with the display mode timing parameters
vtcTiming.HActiveVideo = dispPtr->vMode.width; /**< Horizontal Active Video Size */
vtcTiming.HFrontPorch = dispPtr->vMode.hps - dispPtr->vMode.width; /**< Horizontal Front Porch Size */
vtcTiming.HSyncWidth = dispPtr->vMode.hpe - dispPtr->vMode.hps; /**< Horizontal Sync Width */
vtcTiming.HBackPorch = dispPtr->vMode.hmax - dispPtr->vMode.hpe + 1; /**< Horizontal Back Porch Size */
vtcTiming.HSyncPolarity = dispPtr->vMode.hpol; /**< Horizontal Sync Polarity */
vtcTiming.VActiveVideo = dispPtr->vMode.height; /**< Vertical Active Video Size */
vtcTiming.V0FrontPorch = dispPtr->vMode.vps - dispPtr->vMode.height; /**< Vertical Front Porch Size */
vtcTiming.V0SyncWidth = dispPtr->vMode.vpe - dispPtr->vMode.vps; /**< Vertical Sync Width */
vtcTiming.V0BackPorch = dispPtr->vMode.vmax - dispPtr->vMode.vpe + 1;; /**< Horizontal Back Porch Size */
vtcTiming.V1FrontPorch = dispPtr->vMode.vps - dispPtr->vMode.height; /**< Vertical Front Porch Size */
vtcTiming.V1SyncWidth = dispPtr->vMode.vpe - dispPtr->vMode.vps; /**< Vertical Sync Width */
vtcTiming.V1BackPorch = dispPtr->vMode.vmax - dispPtr->vMode.vpe + 1;; /**< Horizontal Back Porch Size */
vtcTiming.VSyncPolarity = dispPtr->vMode.vpol; /**< Vertical Sync Polarity */
vtcTiming.Interlaced = 0; /**< Interlaced / Progressive video */
/* Setup the VTC Source Select config structure. */
/* 1=Generator registers are source */
/* 0=Detector registers are source */
memset((void *)&SourceSelect, 0, sizeof(SourceSelect));
SourceSelect.VBlankPolSrc = 1;
SourceSelect.VSyncPolSrc = 1;
SourceSelect.HBlankPolSrc = 1;
SourceSelect.HSyncPolSrc = 1;
SourceSelect.ActiveVideoPolSrc = 1;
SourceSelect.ActiveChromaPolSrc= 1;
SourceSelect.VChromaSrc = 1;
SourceSelect.VActiveSrc = 1;
SourceSelect.VBackPorchSrc = 1;
SourceSelect.VSyncSrc = 1;
SourceSelect.VFrontPorchSrc = 1;
SourceSelect.VTotalSrc = 1;
SourceSelect.HActiveSrc = 1;
SourceSelect.HBackPorchSrc = 1;
SourceSelect.HSyncSrc = 1;
SourceSelect.HFrontPorchSrc = 1;
SourceSelect.HTotalSrc = 1;
XVtc_SelfTest(&(dispPtr->vtc));
XVtc_RegUpdateEnable(&(dispPtr->vtc));
XVtc_SetGeneratorTiming(&(dispPtr->vtc), &vtcTiming);
XVtc_SetSource(&(dispPtr->vtc), &SourceSelect);
/*
* Enable VTC core, releasing backpressure on VDMA
*/
XVtc_EnableGenerator(&dispPtr->vtc);
/*
* Configure the VDMA to access a frame with the same dimensions as the
* current mode
*/
dispPtr->vdmaConfig.VertSizeInput = dispPtr->vMode.height;
dispPtr->vdmaConfig.HoriSizeInput = (dispPtr->vMode.width) * 3;
dispPtr->vdmaConfig.FixedFrameStoreAddr = dispPtr->curFrame;
/*
*Also reset the stride and address values, in case the user manually changed them
*/
dispPtr->vdmaConfig.Stride = dispPtr->stride;
for (i = 0; i < DISPLAY_NUM_FRAMES; i++)
{
dispPtr->vdmaConfig.FrameStoreStartAddr[i] = (u32) dispPtr->framePtr[i];
}
/*
* Perform the VDMA driver calls required to start a transfer. Note that no data is actually
* transferred until the disp_ctrl core signals the VDMA core by pulsing fsync.
*/
Status = XAxiVdma_DmaConfig(dispPtr->vdma, XAXIVDMA_READ, &(dispPtr->vdmaConfig));
if (Status != XST_SUCCESS)
{
xdbg_printf(XDBG_DEBUG_GENERAL, "Read channel config failed %d\r\n", Status);
return XST_FAILURE;
}
Status = XAxiVdma_DmaSetBufferAddr(dispPtr->vdma, XAXIVDMA_READ, dispPtr->vdmaConfig.FrameStoreStartAddr);
if (Status != XST_SUCCESS)
{
xdbg_printf(XDBG_DEBUG_GENERAL, "Read channel set buffer address failed %d\r\n", Status);
return XST_FAILURE;
}
Status = XAxiVdma_DmaStart(dispPtr->vdma, XAXIVDMA_READ);
if (Status != XST_SUCCESS)
{
xdbg_printf(XDBG_DEBUG_GENERAL, "Start read transfer failed %d\r\n", Status);
return XST_FAILURE;
}
Status = XAxiVdma_StartParking(dispPtr->vdma, dispPtr->curFrame, XAXIVDMA_READ);
if (Status != XST_SUCCESS)
{
xdbg_printf(XDBG_DEBUG_GENERAL, "Unable to park the channel %d\r\n", Status);
return XST_FAILURE;
}
dispPtr->state = DISPLAY_RUNNING;
return XST_SUCCESS;
}
int DisplayInitialize(DisplayCtrl *dispPtr, XAxiVdma *vdma, u16 vtcId, u32 dynClkAddr, u8 *framePtr[DISPLAY_NUM_FRAMES], u32 stride)
{
int Status;
int i;
XVtc_Config *vtcConfig;
ClkConfig clkReg;
ClkMode clkMode;
/*
* Initialize all the fields in the DisplayCtrl struct
*/
dispPtr->curFrame = 0;
dispPtr->dynClkAddr = dynClkAddr;
for (i = 0; i < DISPLAY_NUM_FRAMES; i++)
{
dispPtr->framePtr[i] = framePtr[i];
}
dispPtr->state = DISPLAY_STOPPED;
dispPtr->stride = stride;
dispPtr->vMode = VMODE_1920x1080;
ClkFindParams(dispPtr->vMode.freq, &clkMode);
/*
* Store the obtained frequency to pxlFreq. It is possible that the PLL was not able to
* exactly generate the desired pixel clock, so this may differ from vMode.freq.
*/
dispPtr->pxlFreq = clkMode.freq;
/*
* Write to the PLL dynamic configuration registers to configure it with the calculated
* parameters.
*/
if (!ClkFindReg(&clkReg, &clkMode))
{
xdbg_printf(XDBG_DEBUG_GENERAL, "Error calculating CLK register values\n\r");
return XST_FAILURE;
}
ClkWriteReg(&clkReg, dispPtr->dynClkAddr);
/*
* Enable the dynamically generated clock
*/
ClkStart(dispPtr->dynClkAddr);
/* Initialize the VTC driver so that it's ready to use look up
* configuration in the config table, then initialize it.
*/
vtcConfig = XVtc_LookupConfig(vtcId);
/* Checking Config variable */
if (NULL == vtcConfig) {
return (XST_FAILURE);
}
Status = XVtc_CfgInitialize(&(dispPtr->vtc), vtcConfig, vtcConfig->BaseAddress);
/* Checking status */
if (Status != (XST_SUCCESS)) {
return (XST_FAILURE);
}
dispPtr->vdma = vdma;
/*
* Initialize the VDMA Read configuration struct
*/
dispPtr->vdmaConfig.FrameDelay = 0;
dispPtr->vdmaConfig.EnableCircularBuf = 1;
dispPtr->vdmaConfig.EnableSync = 0;
dispPtr->vdmaConfig.PointNum = 0;
dispPtr->vdmaConfig.EnableFrameCounter = 0;
return XST_SUCCESS;
}
/* ------------------------------------------------------------ */
/*** DisplaySetMode(DisplayCtrl *dispPtr, const VideoMode *newMode)
**
** Parameters:
** dispPtr - Pointer to the initialized DisplayCtrl struct
** newMode - The VideoMode struct describing the new mode.
**
** Return Value: int
** XST_SUCCESS if successful, XST_FAILURE otherwise
**
** Errors:
**
** Description:
** Changes the resolution being output to the display. If the display
** is currently started, it is automatically stopped (DisplayStart must
** be called again).
**
*/
int DisplaySetMode(DisplayCtrl *dispPtr, const VideoMode *newMode)
{
int Status;
/*
* If currently running, stop
*/
if (dispPtr->state == DISPLAY_RUNNING)
{
Status = DisplayStop(dispPtr);
if (Status != XST_SUCCESS)
{
xdbg_printf(XDBG_DEBUG_GENERAL, "Cannot change mode, unable to stop display %d\r\n", Status);
return XST_FAILURE;
}
}
dispPtr->vMode = *newMode;
return XST_SUCCESS;
}
/* ------------------------------------------------------------ */
/*** DisplayChangeFrame(DisplayCtrl *dispPtr, u32 frameIndex)
**
** Parameters:
** dispPtr - Pointer to the initialized DisplayCtrl struct
** frameIndex - Index of the framebuffer to change to (must
** be between 0 and (DISPLAY_NUM_FRAMES - 1))
**
** Return Value: int
** XST_SUCCESS if successful, XST_FAILURE otherwise
**
** Errors:
**
** Description:
** Changes the frame currently being displayed.
**
*/
int DisplayChangeFrame(DisplayCtrl *dispPtr, u32 frameIndex)
{
int Status;
dispPtr->curFrame = frameIndex;
/*
* If currently running, then the DMA needs to be told to start reading from the desired frame
* at the end of the current frame
*/
if (dispPtr->state == DISPLAY_RUNNING)
{
Status = XAxiVdma_StartParking(dispPtr->vdma, dispPtr->curFrame, XAXIVDMA_READ);
if (Status != XST_SUCCESS)
{
xdbg_printf(XDBG_DEBUG_GENERAL, "Cannot change frame, unable to start parking %d\r\n", Status);
return XST_FAILURE;
}
}
return XST_SUCCESS;
}display_ctrl.h
c
#ifndef DISPLAY_CTRL_H_
#define DISPLAY_CTRL_H_
/* ------------------------------------------------------------ */
/* Include File Definitions */
/* ------------------------------------------------------------ */
#include "xil_types.h"
#include "vga_modes.h"
#include "xaxivdma.h"
#include "xvtc.h"
#include "../dynclk/dynclk.h"
/* ------------------------------------------------------------ */
/* Miscellaneous Declarations */
/* ------------------------------------------------------------ */
#define BIT_DISPLAY_RED 16
#define BIT_DISPLAY_BLUE 8
#define BIT_DISPLAY_GREEN 0
/*
* This driver currently supports 3 frames.
*/
#define DISPLAY_NUM_FRAMES 1
/* ------------------------------------------------------------ */
/* General Type Declarations */
/* ------------------------------------------------------------ */
typedef enum {
DISPLAY_STOPPED = 0,
DISPLAY_RUNNING = 1
} DisplayState;
typedef struct {
u32 dynClkAddr; /*Physical Base address of the dynclk core*/
XAxiVdma *vdma; /*VDMA driver struct*/
XAxiVdma_DmaSetup vdmaConfig; /*VDMA channel configuration*/
XVtc vtc; /*VTC driver struct*/
VideoMode vMode; /*Current Video mode*/
u8 *framePtr[DISPLAY_NUM_FRAMES]; /* Array of pointers to the framebuffers */
u32 stride; /* The line stride of the framebuffers, in bytes */
double pxlFreq; /* Frequency of clock currently being generated */
u32 curFrame; /* Current frame being displayed */
DisplayState state; /* Indicates if the Display is currently running */
} DisplayCtrl;
/* ------------------------------------------------------------ */
/* Procedure Declarations */
/* ------------------------------------------------------------ */
int DisplayStop(DisplayCtrl *dispPtr);
int DisplayStart(DisplayCtrl *dispPtr);
int DisplayInitialize(DisplayCtrl *dispPtr, XAxiVdma *vdma, u16 vtcId, u32 dynClkAddr, u8 *framePtr[DISPLAY_NUM_FRAMES], u32 stride);
int DisplaySetMode(DisplayCtrl *dispPtr, const VideoMode *newMode);
int DisplayChangeFrame(DisplayCtrl *dispPtr, u32 frameIndex);
/* ------------------------------------------------------------ */
/************************************************************************/
#endif /* DISPLAY_CTRL_H_ */vga_modes.h
c
/************************************************************************/
/* */
/* vga_modes.h -- VideoMode definitions */
/* */
/************************************************************************/
/* Author: Sam Bobrowicz */
/* Copyright 2014, Digilent Inc. */
/************************************************************************/
/* Module Description: */
/* */
/* This file contains the definition of the VideoMode type, and */
/* also defines several common video modes */
/* */
/************************************************************************/
/* Revision History: */
/* */
/* 2/17/2014(SamB): Created */
/* */
/************************************************************************/
#ifndef VGA_MODES_H_
#define VGA_MODES_H_
typedef struct {
char label[64]; /* Label describing the resolution */
u32 width; /*Width of the active video frame*/
u32 height; /*Height of the active video frame*/
u32 hps; /*Start time of Horizontal sync pulse, in pixel clocks (active width + H. front porch)*/
u32 hpe; /*End time of Horizontal sync pulse, in pixel clocks (active width + H. front porch + H. sync width)*/
u32 hmax; /*Total number of pixel clocks per line (active width + H. front porch + H. sync width + H. back porch) */
u32 hpol; /*hsync pulse polarity*/
u32 vps; /*Start time of Vertical sync pulse, in lines (active height + V. front porch)*/
u32 vpe; /*End time of Vertical sync pulse, in lines (active height + V. front porch + V. sync width)*/
u32 vmax; /*Total number of lines per frame (active height + V. front porch + V. sync width + V. back porch) */
u32 vpol; /*vsync pulse polarity*/
double freq; /*Pixel Clock frequency*/
} VideoMode;
static const VideoMode VMODE_640x480 = {
.label = "640x480@60Hz",
.width = 640,
.height = 480,
.hps = 656,
.hpe = 752,
.hmax = 799,
.hpol = 0,
.vps = 490,
.vpe = 492,
.vmax = 524,
.vpol = 0,
.freq = 25.0
};
static const VideoMode VMODE_800x600 = {
.label = "800x600@60Hz",
.width = 800,
.height = 600,
.hps = 840,
.hpe = 968,
.hmax = 1055,
.hpol = 1,
.vps = 601,
.vpe = 605,
.vmax = 627,
.vpol = 1,
.freq = 40.0
};
static const VideoMode VMODE_1280x1024 = {
.label = "1280x1024@60Hz",
.width = 1280,
.height = 1024,
.hps = 1328,
.hpe = 1440,
.hmax = 1687,
.hpol = 1,
.vps = 1025,
.vpe = 1028,
.vmax = 1065,
.vpol = 1,
.freq = 108.0
};
static const VideoMode VMODE_1280x720 = {
.label = "1280x720@60Hz",
.width = 1280,
.height = 720,
.hps = 1390,
.hpe = 1430,
.hmax = 1649,
.hpol = 1,
.vps = 725,
.vpe = 730,
.vmax = 749,
.vpol = 1,
.freq = 74.25, //74.2424 is close enough
};
static const VideoMode VMODE_1920x1080 = {
.label = "1920x1080@60Hz",
.width = 1920,
.height = 1080,
.hps = 2008,
.hpe = 2052,
.hmax = 2199,
.hpol = 1,
.vps = 1084,
.vpe = 1089,
.vmax = 1124,
.vpol = 1,
.freq = 148.5 //148.57 is close enough
};
#endif /* VGA_MODES_H_ */dynclk
dynclk.c
c
#include "dynclk.h"
#include "xil_io.h"
#include "math.h"
u32 ClkCountCalc(u32 divide)
{
u32 output = 0;
u32 divCalc = 0;
divCalc = ClkDivider(divide);
if (divCalc == ERR_CLKDIVIDER)
output = ERR_CLKCOUNTCALC;
else
output = (0xFFF & divCalc) | ((divCalc << 10) & 0x00C00000);
return output;
}
u32 ClkDivider(u32 divide)
{
u32 output = 0;
u32 highTime = 0;
u32 lowTime = 0;
if ((divide < 1) || (divide > 128))
return ERR_CLKDIVIDER;
if (divide == 1)
return 0x1041;
highTime = divide / 2;
if (divide & 0b1) //if divide is odd
{
lowTime = highTime + 1;
output = 1 << CLK_BIT_WEDGE;
}
else
{
lowTime = highTime;
}
output |= 0x03F & lowTime;
output |= 0xFC0 & (highTime << 6);
return output;
}
u32 ClkFindReg (ClkConfig *regValues, ClkMode *clkParams)
{
if ((clkParams->fbmult < 2) || clkParams->fbmult > 64 )
return 0;
regValues->clk0L = ClkCountCalc(clkParams->clkdiv);
if (regValues->clk0L == ERR_CLKCOUNTCALC)
return 0;
regValues->clkFBL = ClkCountCalc(clkParams->fbmult);
if (regValues->clkFBL == ERR_CLKCOUNTCALC)
return 0;
regValues->clkFBH_clk0H = 0;
regValues->divclk = ClkDivider(clkParams->maindiv);
if (regValues->divclk == ERR_CLKDIVIDER)
return 0;
regValues->lockL = (u32) (lock_lookup[clkParams->fbmult - 1] & 0xFFFFFFFF);
regValues->fltr_lockH = (u32) ((lock_lookup[clkParams->fbmult - 1] >> 32) & 0x000000FF);
regValues->fltr_lockH |= ((filter_lookup_low[clkParams->fbmult - 1] << 16) & 0x03FF0000);
return 1;
}
void ClkWriteReg (ClkConfig *regValues, u32 dynClkAddr)
{
Xil_Out32(dynClkAddr + OFST_DYNCLK_CLK_L, regValues->clk0L);
Xil_Out32(dynClkAddr + OFST_DYNCLK_FB_L, regValues->clkFBL);
Xil_Out32(dynClkAddr + OFST_DYNCLK_FB_H_CLK_H, regValues->clkFBH_clk0H);
Xil_Out32(dynClkAddr + OFST_DYNCLK_DIV, regValues->divclk);
Xil_Out32(dynClkAddr + OFST_DYNCLK_LOCK_L, regValues->lockL);
Xil_Out32(dynClkAddr + OFST_DYNCLK_FLTR_LOCK_H, regValues->fltr_lockH);
}
/*
* TODO:This function currently requires that the reference clock is 100MHz.
* This should be changed so that the ref. clock can be specified, or read directly
* out of hardware. This has been done in the linux driver, it just needs to be
* ported here.
*/
double ClkFindParams(double freq, ClkMode *bestPick)
{
double bestError = 2000.0;
double curError;
double curClkMult;
double curFreq;
u32 curDiv, curFb, curClkDiv;
u32 minFb = 0;
u32 maxFb = 0;
/*
* This is necessary because the MMCM actual is generating 5x the desired pixel clock, and that
* clock is then run through a BUFR that divides it by 5 to generate the pixel clock. Note this
* means the pixel clock is on the Regional clock network, not the global clock network. In the
* future if options like these are parameterized in the axi_dynclk core, then this function will
* need to change.
*/
freq = freq * 5.0;
bestPick->freq = 0.0;
/*
* TODO: replace with a smarter algorithm that doesn't doesn't check every possible combination
*/
for (curDiv = 1; curDiv <= 10; curDiv++)
{
minFb = curDiv * 6; //This accounts for the 100MHz input and the 600MHz minimum VCO
maxFb = curDiv * 12; //This accounts for the 100MHz input and the 1200MHz maximum VCO
if (maxFb > 64)
maxFb = 64;
curClkMult = (100.0 / (double) curDiv) / freq; //This multiplier is used to find the best clkDiv value for each FB value
curFb = minFb;
while (curFb <= maxFb)
{
curClkDiv = (u32) ((curClkMult * (double)curFb) + 0.5);
curFreq = ((100.0 / (double) curDiv) / (double) curClkDiv) * (double) curFb;
curError = fabs(curFreq - freq);
if (curError < bestError)
{
bestError = curError;
bestPick->clkdiv = curClkDiv;
bestPick->fbmult = curFb;
bestPick->maindiv = curDiv;
bestPick->freq = curFreq;
}
curFb++;
}
}
/*
* We want the ClkMode struct and errors to be based on the desired frequency. Need to check this doesn't introduce
* rounding errors.
*/
bestPick->freq = bestPick->freq / 5.0;
bestError = bestError / 5.0;
return bestError;
}
void ClkStart(u32 dynClkAddr)
{
Xil_Out32(dynClkAddr + OFST_DYNCLK_CTRL, (1 << BIT_DYNCLK_START));
while(!(Xil_In32(dynClkAddr + OFST_DYNCLK_STATUS) & (1 << BIT_DYNCLK_RUNNING)));
return;
}
void ClkStop(u32 dynClkAddr)
{
Xil_Out32(dynClkAddr + OFST_DYNCLK_CTRL, 0);
while((Xil_In32(dynClkAddr + OFST_DYNCLK_STATUS) & (1 << BIT_DYNCLK_RUNNING)));
return;
}dynclk.h
c
#ifndef DYNCLK_H_
#define DYNCLK_H_
/* ------------------------------------------------------------ */
/* Include File Definitions */
/* ------------------------------------------------------------ */
#include "xil_types.h"
/* ------------------------------------------------------------ */
/* Miscellaneous Declarations */
/* ------------------------------------------------------------ */
#define CLK_BIT_WEDGE 13
#define CLK_BIT_NOCOUNT 12
/*
* WEDGE and NOCOUNT can't both be high, so this is used to signal an error state
*/
#define ERR_CLKDIVIDER (1 << CLK_BIT_WEDGE | 1 << CLK_BIT_NOCOUNT)
#define ERR_CLKCOUNTCALC 0xFFFFFFFF //This value is used to signal an error
#define OFST_DYNCLK_CTRL 0x0
#define OFST_DYNCLK_STATUS 0x4
#define OFST_DYNCLK_CLK_L 0x8
#define OFST_DYNCLK_FB_L 0x0C
#define OFST_DYNCLK_FB_H_CLK_H 0x10
#define OFST_DYNCLK_DIV 0x14
#define OFST_DYNCLK_LOCK_L 0x18
#define OFST_DYNCLK_FLTR_LOCK_H 0x1C
#define BIT_DYNCLK_START 0
#define BIT_DYNCLK_RUNNING 0
/* ------------------------------------------------------------ */
/* General Type Declarations */
/* ------------------------------------------------------------ */
typedef struct {
u32 clk0L;
u32 clkFBL;
u32 clkFBH_clk0H;
u32 divclk;
u32 lockL;
u32 fltr_lockH;
} ClkConfig;
typedef struct {
double freq;
u32 fbmult;
u32 clkdiv;
u32 maindiv;
} ClkMode;
/* ------------------------------------------------------------ */
/* Variable Declarations */
/* ------------------------------------------------------------ */
static const u64 lock_lookup[64] = {
0b0011000110111110100011111010010000000001,
0b0011000110111110100011111010010000000001,
0b0100001000111110100011111010010000000001,
0b0101101011111110100011111010010000000001,
0b0111001110111110100011111010010000000001,
0b1000110001111110100011111010010000000001,
0b1001110011111110100011111010010000000001,
0b1011010110111110100011111010010000000001,
0b1100111001111110100011111010010000000001,
0b1110011100111110100011111010010000000001,
0b1111111111111000010011111010010000000001,
0b1111111111110011100111111010010000000001,
0b1111111111101110111011111010010000000001,
0b1111111111101011110011111010010000000001,
0b1111111111101000101011111010010000000001,
0b1111111111100111000111111010010000000001,
0b1111111111100011111111111010010000000001,
0b1111111111100010011011111010010000000001,
0b1111111111100000110111111010010000000001,
0b1111111111011111010011111010010000000001,
0b1111111111011101101111111010010000000001,
0b1111111111011100001011111010010000000001,
0b1111111111011010100111111010010000000001,
0b1111111111011001000011111010010000000001,
0b1111111111011001000011111010010000000001,
0b1111111111010111011111111010010000000001,
0b1111111111010101111011111010010000000001,
0b1111111111010101111011111010010000000001,
0b1111111111010100010111111010010000000001,
0b1111111111010100010111111010010000000001,
0b1111111111010010110011111010010000000001,
0b1111111111010010110011111010010000000001,
0b1111111111010010110011111010010000000001,
0b1111111111010001001111111010010000000001,
0b1111111111010001001111111010010000000001,
0b1111111111010001001111111010010000000001,
0b1111111111001111101011111010010000000001,
0b1111111111001111101011111010010000000001,
0b1111111111001111101011111010010000000001,
0b1111111111001111101011111010010000000001,
0b1111111111001111101011111010010000000001,
0b1111111111001111101011111010010000000001,
0b1111111111001111101011111010010000000001,
0b1111111111001111101011111010010000000001,
0b1111111111001111101011111010010000000001,
0b1111111111001111101011111010010000000001,
0b1111111111001111101011111010010000000001,
0b1111111111001111101011111010010000000001,
0b1111111111001111101011111010010000000001,
0b1111111111001111101011111010010000000001,
0b1111111111001111101011111010010000000001,
0b1111111111001111101011111010010000000001,
0b1111111111001111101011111010010000000001,
0b1111111111001111101011111010010000000001,
0b1111111111001111101011111010010000000001,
0b1111111111001111101011111010010000000001,
0b1111111111001111101011111010010000000001,
0b1111111111001111101011111010010000000001,
0b1111111111001111101011111010010000000001,
0b1111111111001111101011111010010000000001,
0b1111111111001111101011111010010000000001,
0b1111111111001111101011111010010000000001,
0b1111111111001111101011111010010000000001,
0b1111111111001111101011111010010000000001
};
static const u32 filter_lookup_low[64] = {
0b0001011111,
0b0001010111,
0b0001111011,
0b0001011011,
0b0001101011,
0b0001110011,
0b0001110011,
0b0001110011,
0b0001110011,
0b0001001011,
0b0001001011,
0b0001001011,
0b0010110011,
0b0001010011,
0b0001010011,
0b0001010011,
0b0001010011,
0b0001010011,
0b0001010011,
0b0001010011,
0b0001010011,
0b0001010011,
0b0001010011,
0b0001100011,
0b0001100011,
0b0001100011,
0b0001100011,
0b0001100011,
0b0001100011,
0b0001100011,
0b0001100011,
0b0001100011,
0b0001100011,
0b0001100011,
0b0001100011,
0b0001100011,
0b0001100011,
0b0010010011,
0b0010010011,
0b0010010011,
0b0010010011,
0b0010010011,
0b0010010011,
0b0010010011,
0b0010010011,
0b0010010011,
0b0010010011,
0b0010100011,
0b0010100011,
0b0010100011,
0b0010100011,
0b0010100011,
0b0010100011,
0b0010100011,
0b0010100011,
0b0010100011,
0b0010100011,
0b0010100011,
0b0010100011,
0b0010100011,
0b0010100011,
0b0010100011,
0b0010100011,
0b0010100011
};
/* ------------------------------------------------------------ */
/* Procedure Declarations */
/* ------------------------------------------------------------ */
u32 ClkCountCalc(u32 divide);
u32 ClkDivider(u32 divide);
u32 ClkFindReg (ClkConfig *regValues, ClkMode *clkParams);
void ClkWriteReg (ClkConfig *regValues, u32 dynClkAddr);
double ClkFindParams(double freq, ClkMode *bestPick);
void ClkStart(u32 dynClkAddr);
void ClkStop(u32 dynClkAddr);
#endif /* DYNCLK_H_ */wave
wave.c
c
#include "wave.h"
#include "math.h"
/*
* Canvas description
*
* |
* |
* ----------------------------------------------------> hor_x
* | |
* | |
* | width |
* | -------------------------- |
* | | | |
* | | | |
* | | | |
* | | Canvas | height |
* | | | |
* | | | |
* | | | |
* | -------------------------- |
* | |
* | frame |
* --------------------------------------------
* |
* ver_y
*/
//Draw wave on canvas
void draw_wave(u32 width, u32 height, void *BufferPtr, u8 *CanvasBufferPtr, u8 Sign, u8 Bits, u8 color, u16 coe)
{
u8 last_data ;
u8 curr_data ;
u32 i,j ;
u8 wRed, wBlue, wGreen;
u16 adder ;
char *CharBufferPtr ;
short *ShortBufferPtr ;
if(Sign == UNSIGNEDCHAR || Sign == CHAR)
CharBufferPtr = (char *)BufferPtr ;
else
ShortBufferPtr = (short *)BufferPtr ;
float data_coe = 1.00/coe ;
switch(color)
{
case 0 : wRed = 255; wGreen = 255; wBlue = 0; break ; //YELLOW color
case 1 : wRed = 0; wGreen = 255; wBlue = 255; break ; //CYAN color
case 2 : wRed = 0; wGreen = 255; wBlue = 0; break ; //GREEN color
case 3 : wRed = 255; wGreen = 0; wBlue = 255; break ; //MAGENTA color
case 4 : wRed = 255; wGreen = 0; wBlue = 0; break ; //RED color
case 5 : wRed = 0; wGreen = 0; wBlue = 255; break ; //BLUE color
case 6 : wRed = 255; wGreen = 255; wBlue = 255 ; break ; //WRITE color
case 7 : wRed = 150; wGreen = 150; wBlue = 0; break ; //DARK_YELLOW color
default: wRed = 255; wGreen = 255; wBlue = 0; break ;
}
/* if sign is singed, adder will be 1/2 of 2^Bits, for example, Bits equals to 8, adder will be 2^8/2 = 128 */
if (Sign == CHAR || Sign == SHORT)
adder = pow(2, Bits)/2 ;
else
adder = 0 ;
for(i = 0; i < width ; i++)
{
/* Convert char data to u8 */
if (i == 0)
{
if(Sign == UNSIGNEDCHAR || Sign == CHAR)
{
last_data = (u8)(CharBufferPtr[i] + adder)*data_coe ;
curr_data = (u8)(CharBufferPtr[i] + adder)*data_coe ;
}
else
{
last_data = (u8)((u16)(ShortBufferPtr[i] + adder)*data_coe) ;
curr_data = (u8)((u16)(ShortBufferPtr[i] + adder)*data_coe) ;
}
}
else
{
if(Sign == UNSIGNEDCHAR || Sign == CHAR)
{
last_data = (u8)(CharBufferPtr[i-1] + adder)*data_coe ;
curr_data = (u8)(CharBufferPtr[i] + adder)*data_coe ;
}
else
{
last_data = (u8)((u16)(ShortBufferPtr[i-1] + adder)*data_coe) ;
curr_data = (u8)((u16)(ShortBufferPtr[i] + adder)*data_coe) ;
}
}
/* Compare last data value and current data value, draw point between two point */
if (curr_data >= last_data)
{
for (j = 0 ; j < (curr_data - last_data + 1) ; j++)
draw_point(CanvasBufferPtr, i, (height - 450 - curr_data) + j, width, wBlue, wGreen, wRed) ;
}
else
{
for (j = 0 ; j < (last_data - curr_data + 1) ; j++)
draw_point(CanvasBufferPtr, i, (height - 450 - last_data) + j, width, wBlue, wGreen, wRed) ;
}
}
}
//Draw point on point buffer
void draw_point(u8 *PointBufferPtr, u32 hor_x, u32 ver_y, u32 width, u8 wBlue, u8 wGreen, u8 wRed)
{
PointBufferPtr[(hor_x + ver_y*width)*BYTES_PIXEL + 0] = wBlue;
PointBufferPtr[(hor_x + ver_y*width)*BYTES_PIXEL + 1] = wGreen;
PointBufferPtr[(hor_x + ver_y*width)*BYTES_PIXEL + 2] = wRed;
}
//Draw grid on point buffer
void draw_grid(u32 width, u32 height, u8 *CanvasBufferPtr)
{
u32 xcoi, ycoi;
u8 wRed, wBlue, wGreen;
//overlay grid on canvas, background set to black color, grid color is gray.
for(ycoi = 0; ycoi < height; ycoi++)
{
for(xcoi = 0; xcoi < width; xcoi++)
{
if (((ycoi == 0 || (ycoi+1)%32 == 0) && (xcoi == 0 || (xcoi+1)%4 == 0))
|| ((xcoi == 0 || (xcoi+1)%32 == 0) && (ycoi+1)%4 == 0))
{
wRed = 150; //gray
wGreen = 150;
wBlue = 150;
}
else if((xcoi == 960)||(ycoi == 511))
{
wRed = 255;
wGreen = 0;
wBlue = 0;
}
else
{
wRed = 0; // Black
wGreen = 0;
wBlue = 0;
}
draw_point(CanvasBufferPtr, xcoi, ycoi, width, wBlue, wGreen, wRed);
}
}
}wave.h
c
/* ------------------------------------------------------------ */
/* Include File Definitions */
/* ------------------------------------------------------------ */
#include "xil_types.h"
#define BYTES_PIXEL 3
/*
* Color definitions
*/
#define YELLOW 0
#define CYAN 1
#define GREEN 2
#define MAGENTA 3
#define RED 4
#define BLUE 5
#define WRITE 6
#define DARK_YELLOW 7
#define UNSIGNEDCHAR 0
#define CHAR 1
#define UNSIGNEDSHORT 2
#define SHORT 3
/*
* Functions declaration
*/
void draw_grid(u32 width, u32 height, u8 *CanvasBufferPtr) ;
void draw_wave(u32 width, u32 height, void *BufferPtr, u8 *CanvasBufferPtr, u8 Sign, u8 Bits, u8 color, u16 coe) ;
void draw_point(u8 *PointBufferPtr, u32 hor_x, u32 ver_y, u32 width, u8 wBlue, u8 wGreen, u8 wRed);ad9280_sample.h
c
#ifndef AD9280_SAMPLE_H
#define AD9280_SAMPLE_H
/****************** Include Files ********************/
#include "xil_types.h"
#include "xstatus.h"
#define AD9280_SAMPLE_S00_AXI_SLV_REG0_OFFSET 0
#define AD9280_SAMPLE_S00_AXI_SLV_REG1_OFFSET 4
#define AD9280_SAMPLE_S00_AXI_SLV_REG2_OFFSET 8
#define AD9280_SAMPLE_S00_AXI_SLV_REG3_OFFSET 12
/**************************** Type Definitions *****************************/
/**
*
* Write a value to a AD9280_SAMPLE register. A 32 bit write is performed.
* If the component is implemented in a smaller width, only the least
* significant data is written.
*
* @param BaseAddress is the base address of the AD9280_SAMPLEdevice.
* @param RegOffset is the register offset from the base to write to.
* @param Data is the data written to the register.
*
* @return None.
*
* @note
* C-style signature:
* void AD9280_SAMPLE_mWriteReg(u32 BaseAddress, unsigned RegOffset, u32 Data)
*
*/
#define AD9280_SAMPLE_mWriteReg(BaseAddress, RegOffset, Data) \
Xil_Out32((BaseAddress) + (RegOffset), (u32)(Data))
/**
*
* Read a value from a AD9280_SAMPLE register. A 32 bit read is performed.
* If the component is implemented in a smaller width, only the least
* significant data is read from the register. The most significant data
* will be read as 0.
*
* @param BaseAddress is the base address of the AD9280_SAMPLE device.
* @param RegOffset is the register offset from the base to write to.
*
* @return Data is the data from the register.
*
* @note
* C-style signature:
* u32 AD9280_SAMPLE_mReadReg(u32 BaseAddress, unsigned RegOffset)
*
*/
#define AD9280_SAMPLE_mReadReg(BaseAddress, RegOffset) \
Xil_In32((BaseAddress) + (RegOffset))
/************************** Function Prototypes ****************************/
/**
*
* Run a self-test on the driver/device. Note this may be a destructive test if
* resets of the device are performed.
*
* If the hardware system is not built correctly, this function may never
* return to the caller.
*
* @param baseaddr_p is the base address of the AD9280_SAMPLE instance to be worked on.
*
* @return
*
* - XST_SUCCESS if all self-test code passed
* - XST_FAILURE if any self-test code failed
*
* @note Caching must be turned off for this function to work.
* @note Self test may fail if data memory and device are not on the same bus.
*
*/
XStatus AD9280_SAMPLE_Reg_SelfTest(void * baseaddr_p);
#endif // AD9280_SAMPLE_Hadc_dma_ctrl.c
c
#include "adc_dma_ctrl.h"
#include "wave/wave.h"
//DMA s2mm receiver buffer
u8 DmaRxBuffer[MAX_DMA_LEN] __attribute__ ((aligned(64)));
//Grid buffer
u8 GridBuffer[WAVE_LEN] ;
//Wave buffer
u8 WaveBuffer[WAVE_LEN] ;
//DMA struct
XAxiDma AxiDma;
// s2mm interrupt flag
volatile int s2mm_flag ;
//Function declaration
int XAxiDma_Initial(u16 DeviceId, u16 IntrID, XAxiDma *XAxiDma, XScuGic *InstancePtr) ;
void Dma_Interrupt_Handler(void *CallBackRef);
void frame_copy(u32 width, u32 height, u32 stride, int hor_x, int ver_y, u8 *frame, u8 *CanvasBufferPtr) ;
void ad9280_sample(u32 adc_addr, u32 adc_len) ;
/*
*Initial DMA,Draw grid and wave,Start ADC sample
*
*@param width is frame width
*@param frame is display frame pointer
*@param stride is frame stride
*@param InstancePtr is GIC pointer
*/
int XAxiDma_Adc_Wave(u32 width, u8 *frame, u32 stride, XScuGic *InstancePtr)
{
u32 wave_width = width ;
s2mm_flag = 1 ;
XAxiDma_Initial(DMA_DEV_ID, S2MM_INTR_ID, &AxiDma, InstancePtr) ;
//Grid Overlay
draw_grid(wave_width, WAVE_HEIGHT,GridBuffer) ;
while(1) {
if (s2mm_flag)
{
/* clear s2mm_flag */
s2mm_flag = 0 ;
/* Copy grid to Wave buffer */
memcpy(WaveBuffer, GridBuffer, WAVE_LEN) ;
/* wave Overlay */
draw_wave(wave_width, WAVE_HEIGHT, (void *)DmaRxBuffer, WaveBuffer, UNSIGNEDCHAR, ADC_BITS, YELLOW, ADC_COE) ;
/* Copy Canvas to frame buffer */
frame_copy(wave_width, WAVE_HEIGHT, stride, WAVE_START_COLUMN, WAVE_START_ROW, frame, WaveBuffer) ;
/* delay 1000ms */
usleep(1000000) ;
/* Start sample */
ad9280_sample(AD9280_BASE, ADC_CAPTURELEN) ;
/* start DMA translation from AD9280 to DDR3 */
XAxiDma_SimpleTransfer(&AxiDma,(UINTPTR) DmaRxBuffer, ADC_CAPTURELEN, XAXIDMA_DEVICE_TO_DMA);
}
}
}
void ad9280_sample(u32 adc_addr, u32 adc_len)
{
/* provide length to AD9280 module */
AD9280_SAMPLE_mWriteReg(adc_addr, AD9280_LENGTH, adc_len) ;
/* start sample AD9280 */
AD9280_SAMPLE_mWriteReg(adc_addr, AD9280_START, 1) ;
}
//Copy canvas buffer data to special position in frame
void frame_copy(u32 width, u32 height, u32 stride, int hor_x, int ver_y, u8 *frame, u8 *CanvasBufferPtr)
{
int i ;
u32 FrameOffset ;
u32 CanvasOffset ;
u32 CopyLen = width*BYTES_PIXEL ;
for(i = 0 ; i < height; i++)
{
FrameOffset = (ver_y+i)*stride + hor_x*BYTES_PIXEL ;
CanvasOffset = i*width*BYTES_PIXEL ;
memcpy(frame+FrameOffset, CanvasBufferPtr+CanvasOffset, CopyLen) ;
}
FrameOffset = ver_y*stride ;
Xil_DCacheFlushRange((INTPTR) frame+FrameOffset, height*stride) ;
}
//Initial DMA and connect interrupt to handler, open s2mm interrupt
int XAxiDma_Initial(u16 DeviceId, u16 IntrID, XAxiDma *XAxiDma, XScuGic *InstancePtr)
{
XAxiDma_Config *CfgPtr;
int Status;
/* Initialize the XAxiDma device. */
CfgPtr = XAxiDma_LookupConfig(DeviceId);
if (!CfgPtr) {
xil_printf("No config found for %d\r\n", DeviceId);
return XST_FAILURE;
}
Status = XAxiDma_CfgInitialize(XAxiDma, CfgPtr);
if (Status != XST_SUCCESS) {
xil_printf("Initialization failed %d\r\n", Status);
return XST_FAILURE;
}
Status = XScuGic_Connect(InstancePtr, IntrID,
(Xil_ExceptionHandler)Dma_Interrupt_Handler,
(void *)XAxiDma) ;
if (Status != XST_SUCCESS) {
return Status;
}
XScuGic_Enable(InstancePtr, IntrID);
/* Disable MM2S interrupt, Enable S2MM interrupt */
XAxiDma_IntrEnable(XAxiDma, XAXIDMA_IRQ_IOC_MASK, XAXIDMA_DEVICE_TO_DMA);
XAxiDma_IntrDisable(XAxiDma, XAXIDMA_IRQ_ALL_MASK, XAXIDMA_DMA_TO_DEVICE);
return XST_SUCCESS ;
}
//callback function Check interrupt status and assert s2mm flag
void Dma_Interrupt_Handler(void *CallBackRef)
{
XAxiDma *XAxiDmaPtr ;
XAxiDmaPtr = (XAxiDma *) CallBackRef ;
int s2mm_sr ;
s2mm_sr = XAxiDma_IntrGetIrq(XAxiDmaPtr, XAXIDMA_DEVICE_TO_DMA) ;
if (s2mm_sr & XAXIDMA_IRQ_IOC_MASK)
{
/* Clear interrupt */
XAxiDma_IntrAckIrq(XAxiDmaPtr, XAXIDMA_IRQ_IOC_MASK,
XAXIDMA_DEVICE_TO_DMA) ;
/* Invalidate the Data cache for the given address range */
Xil_DCacheInvalidateRange((INTPTR)DmaRxBuffer, ADC_CAPTURELEN);
s2mm_flag = 1 ;
}
}adc_dma_ctrl.h
c
/* ------------------------------------------------------------ */
/* Include File Definitions */
/* ------------------------------------------------------------ */
#include "math.h"
#include "xscugic.h"
#include "ad9280_sample.h"
#include "xaxidma.h"
#include "sleep.h"
/*
*DMA redefines
*/
#define MAX_DMA_LEN 0x800000 /* DMA max length in byte */
#define DMA_DEV_ID XPAR_AXIDMA_0_DEVICE_ID
#define S2MM_INTR_ID XPAR_FABRIC_AXI_DMA_0_S2MM_INTROUT_INTR
//ADC defines
#define AD9280_BASE XPAR_AD9280_SAMPLE_0_S00_AXI_BASEADDR
#define AD9280_START AD9280_SAMPLE_S00_AXI_SLV_REG0_OFFSET
#define AD9280_LENGTH AD9280_SAMPLE_S00_AXI_SLV_REG1_OFFSET
#define ADC_CAPTURELEN 1920 /* ADC capture length */
#define ADC_COE 1 /* ADC coefficient */
#define ADC_BYTE 1 /* ADC data byte number */
#define ADC_BITS 8
//Wave defines
#define WAVE_LEN 1920*1080*3 /* Wave total length in byte */
#define WAVE_START_ROW 0 /* Grid and Wave start row in frame */
#define WAVE_START_COLUMN 0 /* Grid and Wave start column in frame */
#define WAVE_HEIGHT 1080 /* Grid and Wave height */
//Function defines
int XAxiDma_Adc_Wave(u32 width, u8 *frame, u32 stride, XScuGic *InstancePtr);display_demo.h
c
#ifndef DISPLAY_DEMO_H_
#define DISPLAY_DEMO_H_
#include "xil_types.h"
#define DEMO_PATTERN_0 0
#define DEMO_PATTERN_1 1
#define DEMO_PATTERN_2 2
#define DEMO_PATTERN_3 3
#define BYTES_PIXEL 3
#define DEMO_MAX_FRAME (1920*1080*BYTES_PIXEL)
#define DEMO_STRIDE (1920 * BYTES_PIXEL)
void DemoInitialize();
void DemoPrintTest(u8 *frame, u32 width, u32 height, u32 stride, int pattern);
#endif /* DISPLAY_DEMO_H_ */main.c
c
#include "display_demo.h"
#include "display_ctrl/display_ctrl.h"
#include <stdio.h>
#include "math.h"
#include <ctype.h>
#include <stdlib.h>
#include "xil_types.h"
#include "xil_cache.h"
#include "xparameters.h"
#include "sleep.h"
#include "adc_dma_ctrl.h"
//XPAR redefines
#define DYNCLK_BASEADDR XPAR_AXI_DYNCLK_0_BASEADDR
#define VGA_VDMA_ID XPAR_AXIVDMA_0_DEVICE_ID
#define DISP_VTC_ID XPAR_VTC_0_DEVICE_ID
#define VID_VTC_IRPT_ID XPS_FPGA3_INT_ID
#define VID_GPIO_IRPT_ID XPS_FPGA4_INT_ID
#define SCU_TIMER_ID XPAR_SCUTIMER_DEVICE_ID
#define UART_BASEADDR XPAR_PS7_UART_1_BASEADDR
#define INT_DEVICE_ID XPAR_SCUGIC_SINGLE_DEVICE_ID
//Display Driver structs
DisplayCtrl dispCtrl;
XAxiVdma vdma ;
//Framebuffers for video data
u8 frameBuf[DISPLAY_NUM_FRAMES][DEMO_MAX_FRAME] __attribute__ ((aligned(64)));
u8 *pFrames[DISPLAY_NUM_FRAMES]; //array of pointers to the frame buffers
//Interrupt struct and function
XScuGic INST ;
int SetInterruptInit(XScuGic *InstancePtr, u16 IntrID) ;
int main(void)
{
int i;
XAxiVdma_Config *vdmaConfig;
//Initialize ScuGic interrupt
SetInterruptInit(&INST, INT_DEVICE_ID) ;
//Initialize an array of pointers to the 3 frame buffers
for (i = 0; i < DISPLAY_NUM_FRAMES; i++)
{
pFrames[i] = frameBuf[i];
}
//Initialize VDMA driver
vdmaConfig = XAxiVdma_LookupConfig(VGA_VDMA_ID);
XAxiVdma_CfgInitialize(&vdma, vdmaConfig, vdmaConfig->BaseAddress);
//Initialize the Display controller and start it
DisplayInitialize(&dispCtrl, &vdma, DISP_VTC_ID, DYNCLK_BASEADDR, pFrames, DEMO_STRIDE);
DisplayStart(&dispCtrl);
DemoPrintTest(dispCtrl.framePtr[dispCtrl.curFrame], dispCtrl.vMode.width, dispCtrl.vMode.height, dispCtrl.stride, DEMO_PATTERN_3);
XAxiDma_Adc_Wave(dispCtrl.vMode.width, dispCtrl.framePtr[dispCtrl.curFrame], dispCtrl.stride, &INST) ;
return 0;
}
void DemoPrintTest(u8 *frame, u32 width, u32 height, u32 stride, int pattern)
{
u32 xcoi, ycoi;
u32 iPixelAddr = 0;
for(ycoi = 0; ycoi < height; ycoi++)
{
for(xcoi = 0; xcoi < (width*BYTES_PIXEL); xcoi+=BYTES_PIXEL)
{
frame[xcoi+iPixelAddr + 0] = 255; //blue
frame[xcoi+iPixelAddr + 1] = 0; //green
frame[xcoi+iPixelAddr + 2] = 0; //red
}
iPixelAddr += stride;
}
//Flush the framebuffer memory range to ensure changes are written to theactual memory,and therefore accessible by the VDMA.
Xil_DCacheFlushRange((unsigned int) frame, DEMO_MAX_FRAME);
}
int SetInterruptInit(XScuGic *InstancePtr, u16 IntrID)
{
XScuGic_Config * Config ;
Config = XScuGic_LookupConfig(IntrID) ;
XScuGic_CfgInitialize(InstancePtr, Config, Config->CpuBaseAddress) ;
Xil_ExceptionInit();
Xil_ExceptionRegisterHandler(XIL_EXCEPTION_ID_INT,(Xil_ExceptionHandler) XScuGic_InterruptHandler,InstancePtr);
Xil_ExceptionEnable();
return XST_SUCCESS ;
}贡献者
dz13718198068
